Application:
11.6 inch fanless mini pc 11.6 inch fanless mini pc 11.6 inch fanless mini pc

11.6 inch fanless mini pc


Model No.:F11APL
Display:11.6 inch
System:Windows 10
CPU:N3450
Frequency:1.10 ~2.20GHz
Screen:1920×1080
RAM:4+64G
Dimensions:283 x 177 x 73mm
share:
  • Description
  • Specification
  • Accessories
  • 11.6 inch Industrial all in one pc

  • Key Features11.6" IPS + Apollo lake N3450 + 4GB + 64GB   + WiFi 5G&2.4G Dual-band + 1000Mbps + HDMI1.4 + USB3.0 +RS-232(DB9)
    System Physical Standard Configuration:
    TypeDetailsDescriptions
    Product   FormForm Factor11.6" mini Aio PC
    Dimensions283 x 177 x 73mm
    Weight1.25KG
    LCDScreen Size11.6"
    Screen   Resolution1920×1080 (IPS + 250ANSI)
    TPTouch Module G+G Multi-Touch
    Battery Recharge Li-ion batteryOptional
    System Hardware Configuration:
    TypeDetailsDescriptions
    CPUTypeIntel Apollo Lake N3450 Quad-Core
    Speed1.10GHz ~ 2.20GHz
    GPUTypeIntel HD Graphics 500
    MemoryCapacity4GB (LPDDR4)
    StorageeMMC64GB
    SSD   (M.2; 22×42mm)Optional (Support Customized as MOQ order)
    SpeakerBuilt-in8Ω/1W
    MicphoneBuilt-inOptional
    G-sensorBuilt-inYes
    Network Connections:
    TypeDetailsDescriptions
    WIFIWIFI Module: Intel AC3165WIFI 802.11ac/b/g/n 5G&2.4G Dual-band
    BluetoothBT Module: Intel AC3165Bluetooth4.2
    Ethernet NetworkRJ-45100/1000Mbps Gigabit Lan
    4G LTEM.2 4G moduleOptional

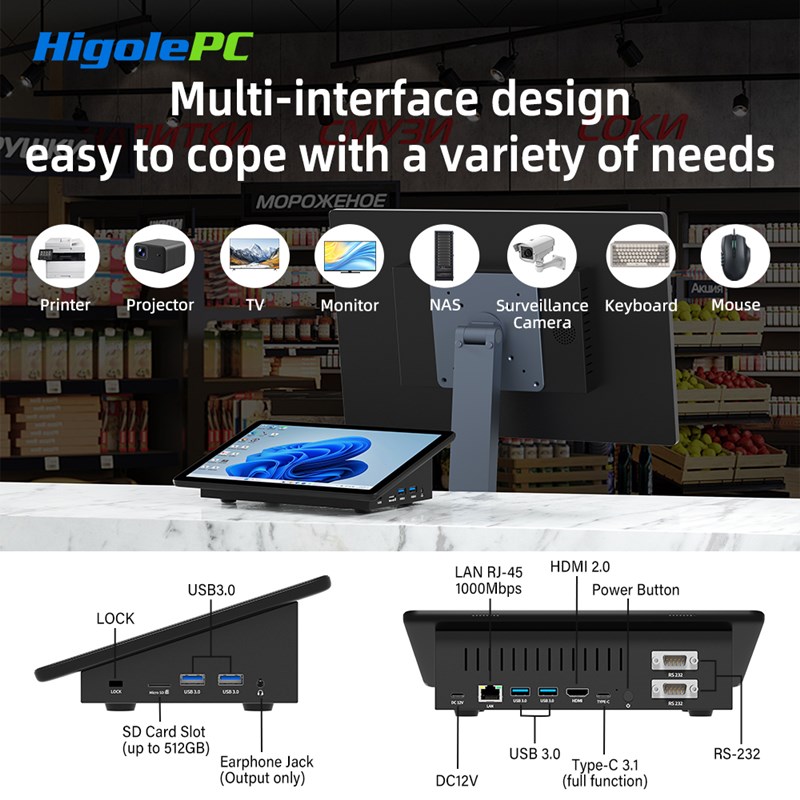

    Interface Configuration:
    TypeDetailsDescriptions
    USB   InterfaceUSB3.0 Host×2pcs
    USB2.0   Host×2pcs
    SD / TF Card   readerTF Card reader×1pc
    Audio Jack 3.5mm headphone×1pc
    HDMIHDMI 1.4×1pc
    Video   output through HDMIUp to 4K
    COM PortDB9 (RS232) /  (RS485) ×4pcs (RS232×3pcs + RS485×1pc)
    Button Switch:
    TypeDetailsDescriptions
    PowerOn/Off×1pc
    VolumeDown/UP×1pc
    CMOS ResetReset by Short PressOptional
    Main Accessories:
    TypeDetailsDescriptions
    Power adapterDC 12V/2A×1pc
    User's ManualUser's Manual×1pc
    Software Configuration:
     TypeDetailsDescriptions
    Power on FunctionBy Power Button or Auto   Power onOptional
    Wake up on LanWake up on Lan by RJ45Support
    PXEPreboot Execution   EnvironmentSupport
    Operating SystemWindows 10Optional
    LinuxTest by end user
    Environment:
    TemperatureOperation Temperature-10oC ~ 50oC (1080p or 4K local   video display)
    Storage   Temperature-20oC ~ 70oC  (Restore to Operation Temperature 2hr   before use)
    HumidityOprating Humidity35% ~ 80% relative humidity, Non-condensing
    Storage   Humidity20% ~ 93% relative humidity, Non-condensing
    Certification:
    CECEOptional
    OtherOtherOptional
