| Key Features | 5.5" IPS + Intel N5105 + 8GB + 128GB + WiFi 6 + 1000Mbps千兆网 + HDMI2.0 X1+ USB3.0 X 4 |
| System Physical Standard Configuration: |
| Type | Details | Descriptions |
| Product Form | Form Factor | 5.5" Mini pc+Tablet |
| Dimensions |
|
| Weight |
|
| LCD | Screen Size | 5.5" |
| Screen Resolution | 720*1280 (IPS ) |
| TP | Touch Module | G+G 5 Multi-Touch |
| Battery | Type | / |
| Capacity | / |
| Working Time | / |
| System Hardware Configuration: |
| Type | Details | Descriptions |
| CPU | Type | Intel Celeron N5105/N5095 |
| Speed | 2.0GHz ~ 2.90GHz |
| GPU | Type | Intel UHD Graphics |
| Memory | Capacity | 8GB/(Optional) LPDDR4 |
| Storage | eMMC | 128GB(Optional) |
| NVME | ×1pc |
| SATA 2.5“ HDD | / |
| Speaker | Built-in | Optional 8Ω/1W |
| Micphone | Built-in | Optional |
| G-sensor | Built-in | Yes |
| Network Connections: |
| Type | Details | Descriptions |
| WIFI | RTL8852BE-CG | WiFi5.0 |
| Bluetooth | RTL8852BE-CG | Bluetooth 5.0 |
| Ethernet Network | RJ-45 | 1000Mbps Gigabit Lan |

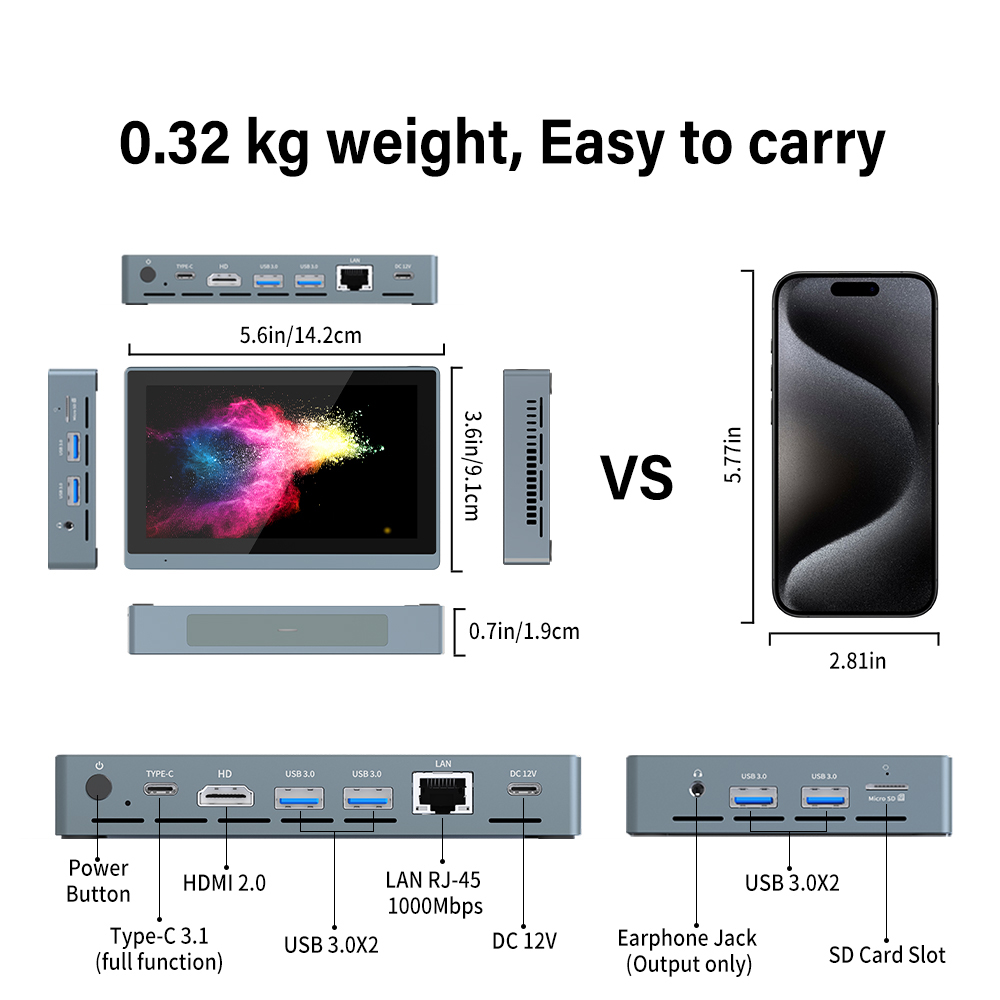

| Interface Configuration: |
| Type | Details | Descriptions |
| USB Interface | USB3.0 | ×4pc（5V/1A) |
| Type-C | Type-C 3.1 | ×1pc（全功能 ,支持PD充电，视频） |
| SD / TF Card reader | TF Card reader | ×1pc (up to 512GB) |
| Audio Jack | 3.5mm headphone (Output only) | ×1pc |
| HDMI | HDMI 2.0 | ×1pc |
| Button Switch: |
| Type | Details | Descriptions |
| Power | On/Off | ×1pc |
| Volume | Down/UP | / |
| CMOS Reset | Reset by Short Press | / |
| Main Accessories: |
| Type | Details | Descriptions |
| Power adapter | DC 12V/3A | ×1pc |
| User's Manual | User's Manual | ×1pc |
| Software Configuration: |
| Type | Details | Descriptions |
| Power on Function | By Power Button or Auto Power on | Optional |
| Wake up on Lan | Wake up on Lan by RJ45 | / |
| PXE | Preboot Execution Environment | / |
| Operating System | Windows 11 | Optional |
| Linux | Optional |
| Certification: |
| CE | CE | Yes |
| Other | Other | Optional |
