8 inch Android Rugged Tablet 8 inch Android Rugged Tablet

8 inch Android Rugged Tablet


Model No: F8R
Screen: 8 inch IPS
CPU: Rockchip RK3566 Quad-core
Frequency: 1.8GHz
Storage: 2+ 32GB/4+ 64GB

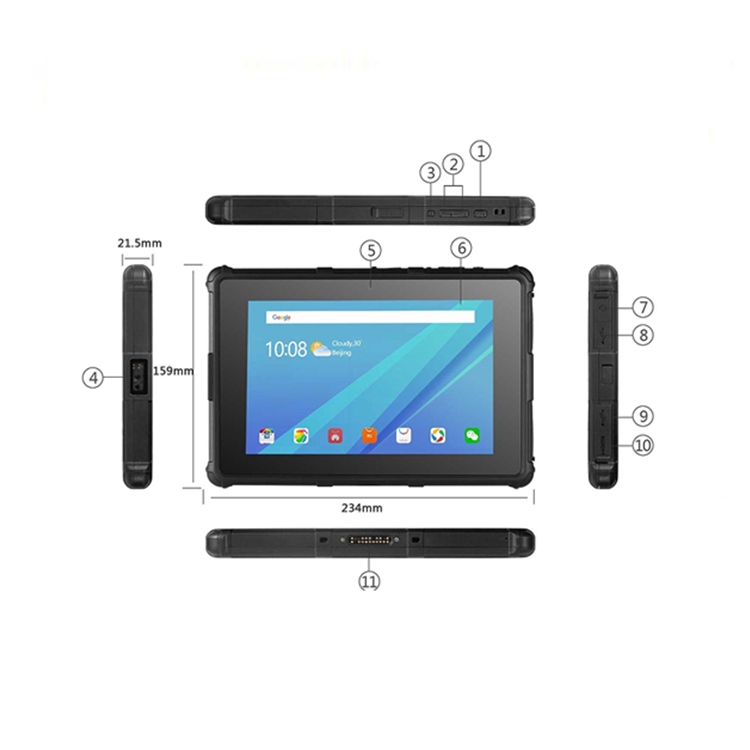

Dimension: 234 x 159 x 21.5 mm
share:
  • Description
  • Specification
  • Accessories
  • F8R-6副本_副本.jpg

  • System Physical Standard Configuration:
    TypeDetailsDescriptions
    Product   FormForm FactorIP67 Android Rugged Tablet PC
    Dimensions234×159×21.5mm
    Weight0.7KG
    LCDScreen Size8"
    Screen Resolution800×1280 (IPS+300ANSI)
    TPTouch Module G+G Multi-Touch
    Battery TypeRechargeable lithium polymer
    Capacity5500mAh/3.7V
    Working   TimeOver 6 hours (FHD local video display)
    System Hardware Configuration:
    TypeDetailsDescriptions
    CPUTypeRockchip RK3566 Cortex A55 Quad-Core
    Speed1.8GHz
    GPUTypeMali-G52
    MemoryCapacity2GB /4GB
    StorageeMMC32GB/64GB
    CameraFront 2M
    Rear 5M
    SpeakerBuilt-in8Ω/1W with water proof x2pcs
    MicphoneBuilt-inYes
    G-sensorBuilt-inYes
    Network Connections:
    TypeDetailsDescriptions
    WIFIWIFI Module: WIFI 802.11ac/b/g/n 2.4G&5Ghz Dual-band
    BluetoothBT Module: Bluetooth4.2
    QR code ScannersOptionalOptional
    NFCOptionalOptional
    GPSBD2/GPSOptional
    FingerprinterCapacitive fingerprint   sensorOptional
    4G LTEM.2 slotOptional
    Interface Configuration:
    TypeDetailsDescriptions
    USB   InterfaceUSB3.0×1pc
    Type-C   (2.0)×1pcs (Base on USB2.0; DC-IN AND data transmit)
    SD / TF Card   readerTF Card reader×1pc (up to 256GB)
    SIM  Card SlotSIM Slot for 4G LTEOptional
    Audio Jack 3.5mm standard×1pc
    HDMIMicro HDMI 2.0×1pc
    Video   output through HDMIUp to 4K@60fps
    Button Switch:
    TypeDetailsDescriptions
    PowerOn/Off×1pc
    VolumeDown/UP×1pc
    HotkeysControl QR Scanner×1pc
    Main Accessories:
    TypeDetailsDescriptions
    Power adapterDC 5V/3A (Type-C)×1pc
    User's ManualUser's Manual×1pc

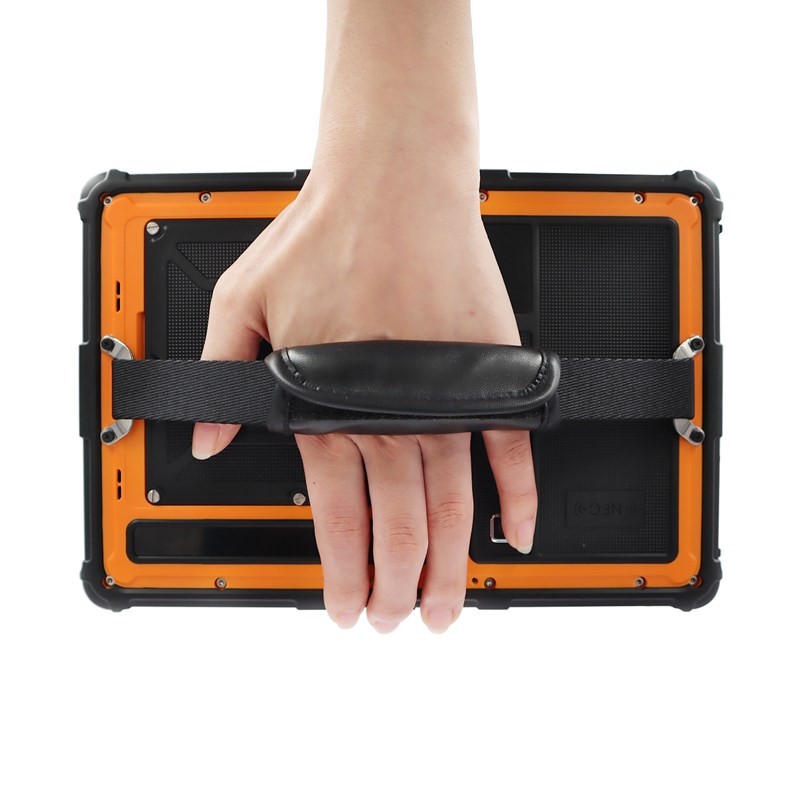

    Handle StrapsOptionalOptional
    Extension DockingUSB2.0×1pc ; DC IN × 1pcOptional
    Software Configuration:
     TypeDetailsDescriptions
    Power on FunctionBy Power Button or Auto   Power onOptional
    Operating   SystemAndorid11Yes
    LinuxTest by end user
    Environment:
    TemperatureOperation Temperature-10oC ~ 55oC (1080p or 4K local   video display)
    Storage   Temperature-20oC ~ 70oC  (Restore to Operation Temperature 2hr   before use)
    HumidityOprating Humidity35% ~ 80% relative humidity, Non-condensing
    Storage   Humidity20% ~ 93% relative humidity, Non-condensing
    Certification:
    IP67IP67 CertificationYes
