Key Features | 5.5" IPS + Intel J4125 + 8GB + 128GB + WiFi 6 + 1000Mbps千兆网 + HDMI1.4 X 2+ USB3.0 X 4 |
System Physical Standard Configuration: |
Type | Details | Descriptions |
Product Form | Form Factor | 5.5" Mini pc+Tablet |
Dimensions | 142×91×19mm |
Weight | 0.2KG |
LCD | Screen Size | 5.5" |
Screen Resolution | 720*1280 (IPS ) |
TP | Touch Module | G+G 5 Multi-Touch |
Battery | Type | Rechargeable lithium polymer |
Capacity | 1700mAh/3.7V |
Working Time | 3 hours (FHD local video display) |
System Hardware Configuration: |
Type | Details | Descriptions |
CPU | Type | Intel Celeron J4125 |
Speed | 2.0GHz ~ 2.70GHz |
GPU | Type | Intel HD600 Graphics |
Memory | Capacity | 8GB(Optional) LPDDR4 |
Storage | eMMC | 128GB(Optional) |
SSD | / |
SATA 2.5“ HDD | / |
Speaker | Built-in | Optional 8Ω/1W |
Micphone | Built-in | Optional |
G-sensor | Built-in | Yes |
Network Connections: |
Type | Details | Descriptions |
WIFI | WIFI Module: Realtek 8723BS | WiFi 5.0 |
Bluetooth | BT Module: Realtek 8723BS | Bluetooth 5.0 |
Ethernet Network | RJ-45 | 1000Mbps Gigabit Lan |
Interface Configuration: |
Type | Details | Descriptions |
USB Interface | USB3.0 | ×4pc |

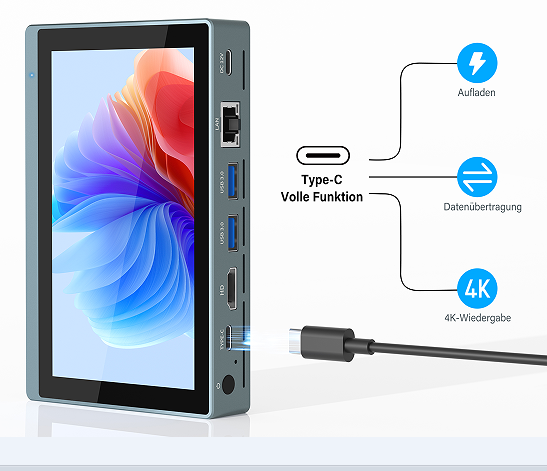

Type-C | Type-C 3.1 | ×1pc |
SD / TF Card reader | TF Card reader | ×1pc (up to 128GB) |
Audio Jack | 3.5mm headphone (Output only) | ×1pc |
HDMI | HDMI 1.4 | ×2pc |
Button Switch: |
Type | Details | Descriptions |
Power | On/Off | ×1pc |
Volume | Down/UP | / |
CMOS Reset | Reset by Short Press | / |

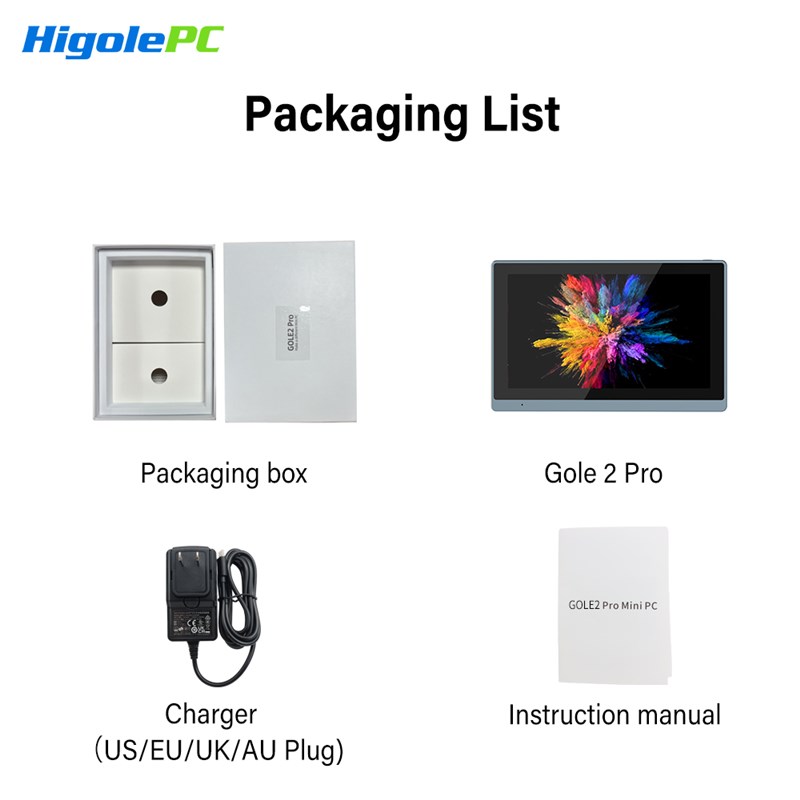

Main Accessories: |
Type | Details | Descriptions |
Power adapter | DC 12V/3A | ×1pc |
User's Manual | User's Manual | ×1pc |
Software Configuration: |
Type | Details | Descriptions |
Power on Function | By Power Button or Auto Power on | Optional |
Wake up on Lan | Wake up on Lan by RJ45 | / |
PXE | Preboot Execution Environment | / |
Operating System | Windows 11 | Optional |
Linux | Optional |
Certification: |
CE | CE | Yes |
Other | Other | Optional |
