| Key Features | Windows 11 pro + Intel J4125 + 8GB + 128GB + WiFi 6 + 1000Mbps千兆网 + HDMI2.0 X 2+ USB3.0 X 4 |
| System Physical Standard Configuration: |
| Type | Details | Descriptions |
| Product Form | Form Factor | Mini pc |

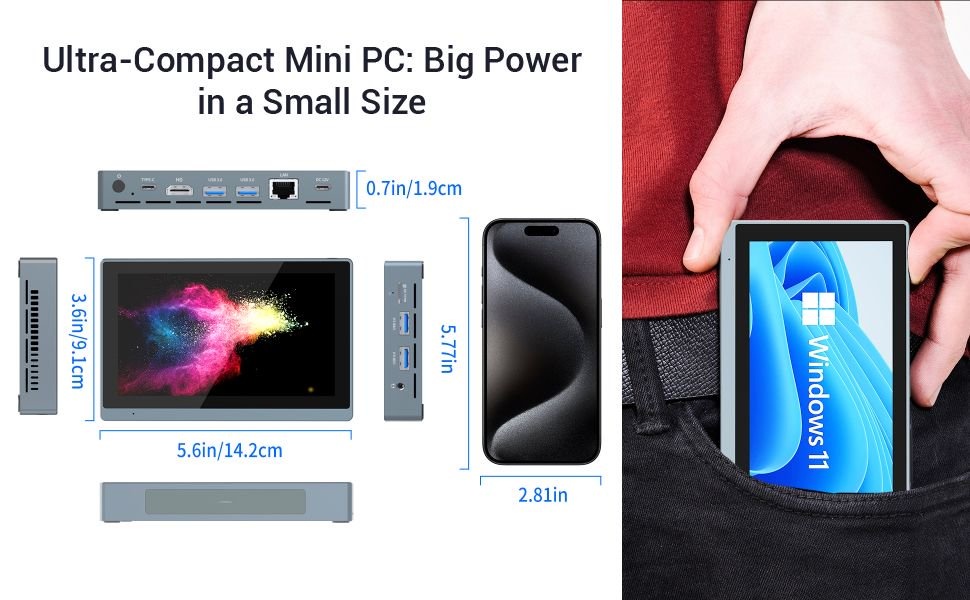

| Dimensions | 142×91×19mm |
| Weight | 0.2KG |
| System Hardware Configuration: |
| Type | Details | Descriptions |
| CPU | Type | Intel Celeron J4125 |
| Speed | 2.0GHz ~ 2.70GHz |
| GPU | Type | Intel HD 600 Graphics |
| Memory | Capacity | 8GB(Optional) LPDDR4 |
| Storage | eMMC | 128GB(Optional) |
| SSD | Support |
| SATA 2.5“ HDD | / |
| Network Connections: |
| Type | Details | Descriptions |
| WIFI | WIFI Module: Realtek 8821ce | WiFi5 802.11a/b/g/n/ac 2.4G&5Ghz Dual-band |
| Bluetooth | BT Module: Realtek 8821ce | Bluetooth 5.0 |
| Ethernet Network | RJ-45 | 1000Mbps Gigabit Lan |
| Interface Configuration: |
| Type | Details | Descriptions |
| USB Interface | USB3.0 | ×4pc |
| Type-C | Type c charge | ×1pc |
| SD / TF Card reader | TF Card reader | ×1pc (up to 128GB) |
| Audio Jack | 3.5mm headphone (Output only) | ×1pc |
| HDMI | HDMI 2.0 | ×2pc |
| Button Switch: |
| Type | Details | Descriptions |
| Power | On/Off | ×1pc |
| Volume | Down/UP | / |
| CMOS Reset | Reset by Short Press | / |
| Main Accessories: |
| Type | Details | Descriptions |
| Power adapter | DC 12V/3A | ×1pc |
| User's Manual | User's Manual | ×1pc |
| Software Configuration: |
| Type | Details | Descriptions |
| Power on Function | By Power Button or Auto Power on | Optional |
| Wake up on Lan | Wake up on Lan by RJ45 | Optional |
| PXE | Preboot Execution Environment | Optional |
| Operating System | Windows 11 | Optional |
| Linux | Optional |
| Certification: |
|
|
|
|
|
|
|
| CE | CE | Optional |
| Other | Other | Optional |
