| Brief Introduction： |
| PC Stick with powered by DC / Dual 4K display |
| HARDWARE SPEC: |
|
|
|
| Processor | Model | Gemini Lake/Gemini Lake R (subject to BIOs upgrde) |
| Architecture | Intel Celeron |
| CPU support | J4125/N4000/N4120/ |
| CPU Speed | Base 1.1G-2.0G;Turbo burst 2.3G-2.9GHz |
| Cache | 4MB |
| GPU | UHD600 750MHZ |
| System OS | System OS | WINDOWS 10/11 Pro Entry/ IOT |
| DDR | Volume | 4GB or 8GB LPDDR4 (8GB LPDDR4 (556 ball 单贴; 8GB*1)) |
| Storage | eMMC | 32GB/64GB/128GB (TBC) |
| WiFi Module | RTL8852BE-CG | WiFi6 /WiFi5 |
| Bluetooth | RTL8852BE-CG | Bluetooth 5.2 / Bluetooth 5.0 |

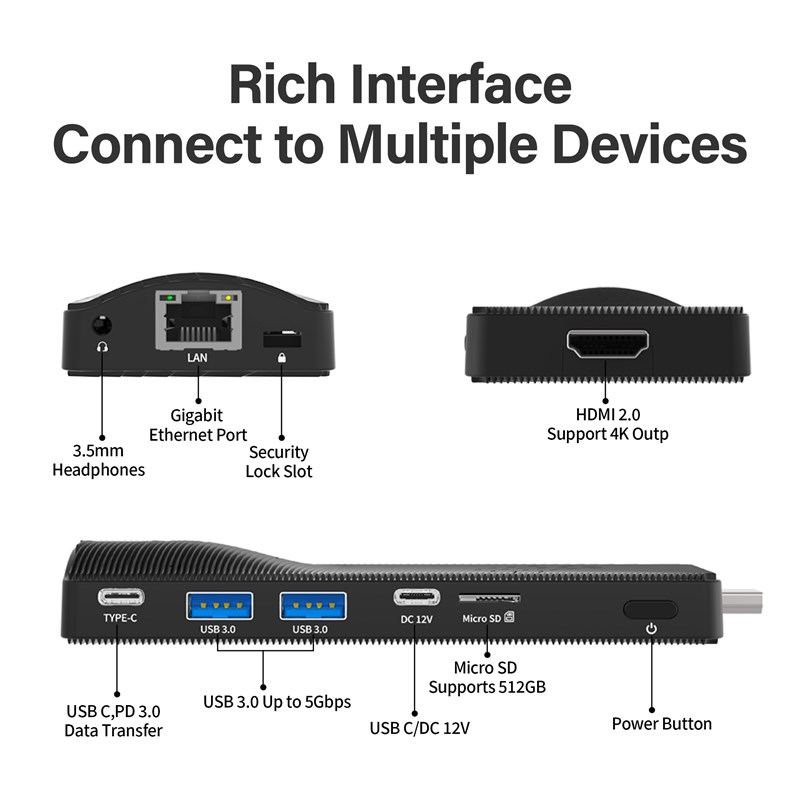

| Ethernet Network | RJ45 port | 100/1000Mbps Gigabit Lan (RTL8111H) |
| Audio Jack | 3.5mm headphone (Output only) | ×1pc |
| HDMI Output | HDMI2.0 4K@60 | ×1pcs |

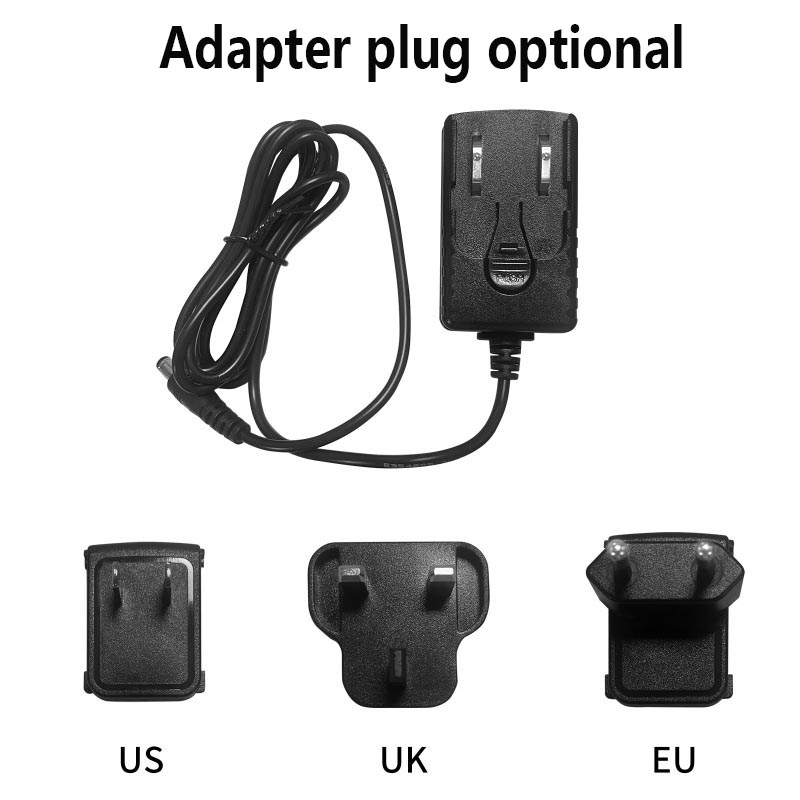

| Power | DC 12V |
|
|
| Connector | type-c | x1 |
| Micro SD / TF Card | x1 |
| USB3.0 Type A (Host) | x2 |
| Antenna | Internal x1 |
| Button / Keys | Power ON/OFF | ×1 |
| Temperature | Operation Temperature | -10oC ~ 50oC (1080p or 4K local video display) |
| Storage Temperature | -20oC ~ 70oC (Restore to Operation Temperature 2hr before use) |
| Humidity | Oprating Humidity | 35% ~ 80% relative humidity, Non-condensing |
| Storage Humidity | 20% ~ 93% relative humidity, Non-condensing |
| CE | CE | Optional |
| Other | Other | Optional |
